KN-L Series


CHP Model #

Electrical Power 64
System Efficiency 86.3%
Thermal Power 315,000
NOX (G/BHP-H) < 1.0
Heat Rate BTU/kWe 9,578
CO (G/BHP-H) < 0.7
Electrical Power 104
System Efficiency 85.9%
Thermal Power 493,000
NOX (G/BHP-H) < 1.0
Heat Rate BTU/kWe 9,500
CO (G/BHP-H) < 0.7
Electrical Power 180
System Efficiency 84.5%
Thermal Power 813,000
NOX (G/BHP-H) < 1.0
Heat Rate BTU/kWe 9,388
CO (G/BHP-H) < 0.7
Electrical Power 239
System Efficiency 87.3%
Thermal Power 1,073,000
NOX (G/BHP-H) < 1.0
Heat Rate BTU/kWe 9,037
CO (G/BHP-H) < 0.7
Electrical Power 373
System Efficiency 85.3%
Thermal Power 1,565,000
NOX (G/BHP-H) < 1.0
Heat Rate BTU/kWe 8,922
CO (G/BHP-H) < 1.0
Electrical Power 430
System Efficiency 85.9%
Thermal Power 1,880,000
NOX (G/BHP-H) < 1.0
Heat Rate BTU/kWe 9,060
CO (G/BHP-H) < 1.0
Electrical Power 550
System Efficiency 86.6%
Thermal Power 2,408,000
NOX (G/BHP-H) < 1.0
Heat Rate BTU/kWe 9,014
CO (G/BHP-H) < 1.0
Deprecated: wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/kraftpow/public_html/develop/wp-includes/functions.php on line 4861

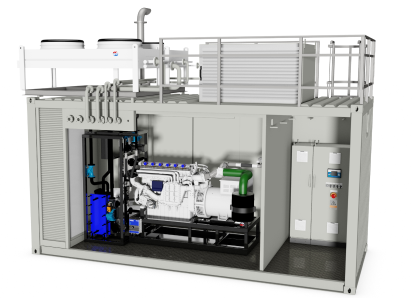

NATURAL GAS LEAN-BURN CHP MODULES

Lean and clean, the KN-L Series delivers the benefits of higher efficiency lean-burn engine technology and still produces low exhaust emissions without after-treatment. Our broadest range of Natural Gas CHP Modules, the KN-L Series includes 7 models, each configurable for indoor or outdoor installation. Compact and pre-engineered to reduce installation time and costs.

Specification Sheet

Download Download

Download

    Contact me about future product releases, installation reviews, and other marketing content.

    More Details Below
    Even lower NOx emissions tuning is available for specific applications in addition to simple CO mitigation to avoid the expense of SCR after-treatment

    The Kraft Energy Systems Advantage

    Deprecated: wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/kraftpow/public_html/develop/wp-includes/functions.php on line 4861
    • Over 50 Years of Power Generation Experience
    • Pre & Post Sale – Engineering Support
    • Long Term Service Agreements
    • 24 x 7 Parts & Service Lower Energy Cost
    • Environmentally Responsible
    • Reliable, Fuel Efficient Industrial Engine
    • Fully Automated & User Friendly Control System with Remote Access & Monitoring
    • Compact Standardized Designs
    • Quiet Indoor and Outdoor Enclosure Design
    • Hot Water or Recovery
    • Pre-manufactured Modules Reduce Installation Cost
    • Standardized Utility Inter-tie Controls, Relay Options Available
    • Low Exhaust Emissions Without Aftertreatment*
    • Lean Burn Models from 64 kWe – 550 kWe
    CHP Unit Model
    Man Engine Model
    Generator Model
    Electric Output
    Amps @ 600V @ 0.8 PF
    Amps @ 480V @ 0.8 PF
    Fuel Consumption (LHV)
    Engine Horsepower
    No. of Cylinders/Arrangement
    Bore & Stoke
    Displacement
    BMEP
    Compression Ratio
    Electric Efficiency
    Thermal Efficiency
    Combined Efficiency
    -
    -
    kWe
    Amps
    Amps
    BTU/hr
    BHP
    -
    in
    cu in
    psi
    -
    %
    %
    %
    KN 60L
    E 0834 LE302
    LSA 44.3 S3
    64
    77
    96
    613,000
    91
    4/IL
    4.25 x 4.92
    279
    172.6
    11:1
    35.2
    51.0
    86.3
    KN 100L
    E 0836 LE302
    LSA 44.3 M6
    104
    125
    156
    988,000
    148
    6/IL
    4.25 x 4.92
    319
    155.2
    11:1
    36.0
    49.9
    85.9
    KN 180L
    E 2676 LE202
    LSA 46.3 S4
    180
    217
    271
    1,690,000
    254
    6/IL
    4.96 x 6.54
    757
    149.9
    12.6:1
    36.4
    48.1
    84.5
    KN 240L
    E 2676 LE202
    LSA 46.3 M7
    239
    287
    359
    2,160,000
    335
    6/IL
    4.96 x 6.54
    757
    197.3
    12.6:1
    37.7
    49.7
    87.3
    KN 375L
    E 3268 LE212
    LSA 47.2 S5
    373
    449
    561
    3,328,000
    523
    8/V
    5.20 x 6.18
    1,049
    219.4
    12:1
    38.3
    47.0
    85.3
    KN 430L
    E 3262 LE232
    LSA 47.2 M7
    430
    517
    647
    3,896,000
    603
    12/V
    5.20 x 6.18
    1,573
    168.2
    12:1
    37.7
    48.2
    85.9
    KN 550L
    E 3262 LE202
    LSA 49.3 S4
    550
    662
    827
    4,958,000
    778
    12/V
    5.20 x 6.18
    1,573
    217.5
    12:1
    37.9
    48.7
    86.6
    Thermal Output
    Process Water Flow @ 32ºF rise
    Process Water Flow @ 20°F rise
    Process Water Temperature
    Sound Level @ 1m
    Exhaust Flow
    Exhaust Temperature
    NOx emission*
    CO emission*
    NMHC emission*
    Gas Pressure (Min)
    BTU/hr
    GPM
    GPM
    ºF
    dB(A)
    lbs/hr
    ºF
    g/BHP-hr
    g/BHP-hr
    g/BHP-hr
    in WC
    315,000
    20
    32
    190 or 180
    75 +/- 3
    809
    248
    < 1.0
    < 0.7
    < 0.1
    10
    493,000
    31
    51
    190 or 180
    75 +/- 3
    1,329
    248
    < 1.0
    < 0.7
    < 0.1
    10
    813,000
    51
    83
    190 or 180
    75 +/- 3
    2,384
    248
    < 1.0
    < 0.7
    < 0.1
    10
    1,073,000
    68
    110
    190 or 180
    75 +/- 3
    3,122
    248
    < 1.0
    < 0.7
    < 0.1
    10
    1,565,000
    99
    160
    190 or 180
    75 +/- 3
    4,630
    248
    < 1.0
    < 1.0
    < 0.1
    10
    1,880,000
    119
    192
    190 or 180
    75 +/- 3
    5,338
    248
    < 1.0
    < 1.0
    < 0.1
    10
    2,408,000
    152
    246
    190 or 180
    75 +/- 3
    6,919
    248
    < 1.0
    < 1.0
    < 0.1
    10
    Deprecated: wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/kraftpow/public_html/develop/wp-includes/functions.php on line 4861

    * Correlation 15% O2. Lower NOx levels possible on request
    Tech Data is based on Natural Gas with a calorific value of 970 Btu/ft3 and a methane No. >80.

    The Tech Data is based on standard conditions in accordance with DIN ISO 3046-1. Atmospheric pressure: 14.5 psi or 328 ft above sea level, Air Temperature: 77 deg F, Relative Humidity: 30%
    Tolerances: Fuel Consumption + 5%, Thermal Output +/- 8%

    Sound Level Rating applies to Indoor Enclosed Module. Sound Level Rating applicable to Outdoor Enclosed Module is 65 dB(A) +/- 3 @ 10 m Heat transfer data is based on 40% antifreeze.
